How much does BYD home charger installation cost in Islamabad?

SiSUN ELECTRIC's complete BYD 7kW home charger installation package in Islamabad and Rawalpindi is priced at Rs 65,000 ex-tax. This includes the BYD Wall Box Charger unit, power cable (10mm²), earthing cable (6mm²), conduit, RCCB leakage protector, miniature breaker, surge protector (built into BYD Wall Box), IP65-rated distribution box, crimping thimbles, and full installation, testing and commissioning by PEC-licensed engineers.

What is the difference between the stock BYD 2.2kW charger and a 7kW home charger?

The stock BYD portable charger (2.2kW) plugs into a standard 16A household socket and is very slow — it takes 20+ hours to fully charge a BYD Atto 3 (49.92 kWh battery). A dedicated 7kW wall box charger installed by SiSUN ELECTRIC is over 3x faster, charging the same Atto 3 to full in approximately 7 hours, making overnight home charging practical. The 7kW charger also uses a dedicated circuit with proper surge and leakage protection, making it safer for daily use.

Which BYD vehicles in Pakistan are compatible with the 7kW home charger?

All BYD electric vehicles sold in Pakistan — BYD Atto 2, BYD Atto 3, BYD Seal, BYD Sealion 7, and BYD Shark 6 (PHEV) — support Type 2 AC charging and are fully compatible with the BYD 7kW wall box home charger installed by SiSUN ELECTRIC.

Do you offer a free site survey before BYD charger installation?

Yes. SiSUN ELECTRIC offers a completely free site survey and assessment before any BYD home charger installation in Islamabad and Rawalpindi. Our engineer visits your home, assesses the existing electrical infrastructure, identifies the best charger placement, and provides a detailed quote — all at no cost and no obligation.

What warranty comes with BYD home charger installation by SiSUN ELECTRIC?

SiSUN ELECTRIC provides a 1-year installation warranty on all BYD home charger installations in Islamabad and Rawalpindi. The BYD Wall Box charger unit itself comes with the manufacturer's warranty. Our warranty covers all workmanship, wiring, and installed components.

How much does it cost to charge a BYD at home vs a public charging station?

Charging at home on a 7kW charger is significantly cheaper than using public DC fast chargers. In Islamabad, residential electricity (protected category) typically costs around Rs 30–50 per unit (kWh). A full charge for a BYD Atto 3 (50 kWh) would cost approximately Rs 1,500–2,500 at home. Public DC fast chargers can cost Rs 80–150 per kWh, making the same charge Rs 4,000–7,500. A home charger pays for itself quickly.

BYD Home Charger Installation Islamabad & Rawalpindi | SiSUN ELECTRIC — Rs 65,000 Complete

✅ Officially Authorized BYD EV Charger Installer — Islamabad & Rawalpindi

BYD Home Charger
Installation in
Islamabad & Rawalpindi

Name: SiSUN ELECTRIC Pvt. Ltd.
Address: Office 3, 4th Floor, Tawseen Complex, Civic Center, Bahria Town Phase 4, Islamabad, Islamabad Capital Territory, 44000, PK
Telephone: +923350777766
Price range: Rs 65,000

Wake up to a fully charged BYD — every morning. SiSUN ELECTRIC installs BYD's official 7kW Wall Box home charger with everything included, done in 3–5 days.

Complete Package Rs 65,000 ex-tax · all-inclusive

💬 WhatsApp for Free Survey 📋 Get a Quote

PEC Licensed Engineers BYD Authorized Installer 1-Year Warranty 3–5 Days Installation Free Site Survey

⚡ Book Free Site Assessment

Your Name

WhatsApp Number

City

BYD Model

📍 We serve Islamabad & Rawalpindi only | Response within 2 hours

⚡ Watch It in Action

BYD Charger
Installation — Smooth Experience

From free site survey to a fully commissioned 7kW Wall Box — professionally installed by SiSUN ELECTRIC's PEC-licensed engineers in Islamabad.

💬 Book My Installation 🔧 See How It Works

7kW

Wall Box Charger

3–5

Days Installation

1 Yr

Warranty Included

Free

Site Survey

✅ Official BYD Authorized Installer

Islamabad's BYD Authorized EV Charger Installer

SiSUN ELECTRIC is officially authorized by BYD Pakistan (MMC) as the dedicated BYD EV home charger installer for Islamabad and Rawalpindi. Our installations follow BYD's official Bill of Materials and approved specifications — the same standards BYD mandates for all its authorized installers in Pakistan.

Based in Bahria Town, Islamabad, our team of PEC-licensed electrical engineers has delivered solar and EV charging projects across the twin cities. We bring the same certified expertise to every BYD home charger installation — ensuring your vehicle charges safely, efficiently, and with full warranty protection.

🤝

Officially Authorized by BYD Pakistan

SiSUN ELECTRIC is officially appointed by BYD Pakistan (MMC) as an authorized EV charger installer. All installations follow BYD's official equipment and installation specifications.

🔧

PEC Licensed Engineers

All installations are performed by Pakistan Engineering Council (PEC) licensed engineers — not general electricians.

📍

Islamabad & Rawalpindi Specialists

Locally based in Islamabad. Fast site visit response times across DHA, Bahria Town, E-7, F-7, Gulraiz, PWD, and all sectors.

🛡️

Full Compliance & Safety

RCCB leakage protection, surge protection, IP65-rated distribution box, and proper earthing — all included in the standard package.

Get a Free Quote → 💬 WhatsApp

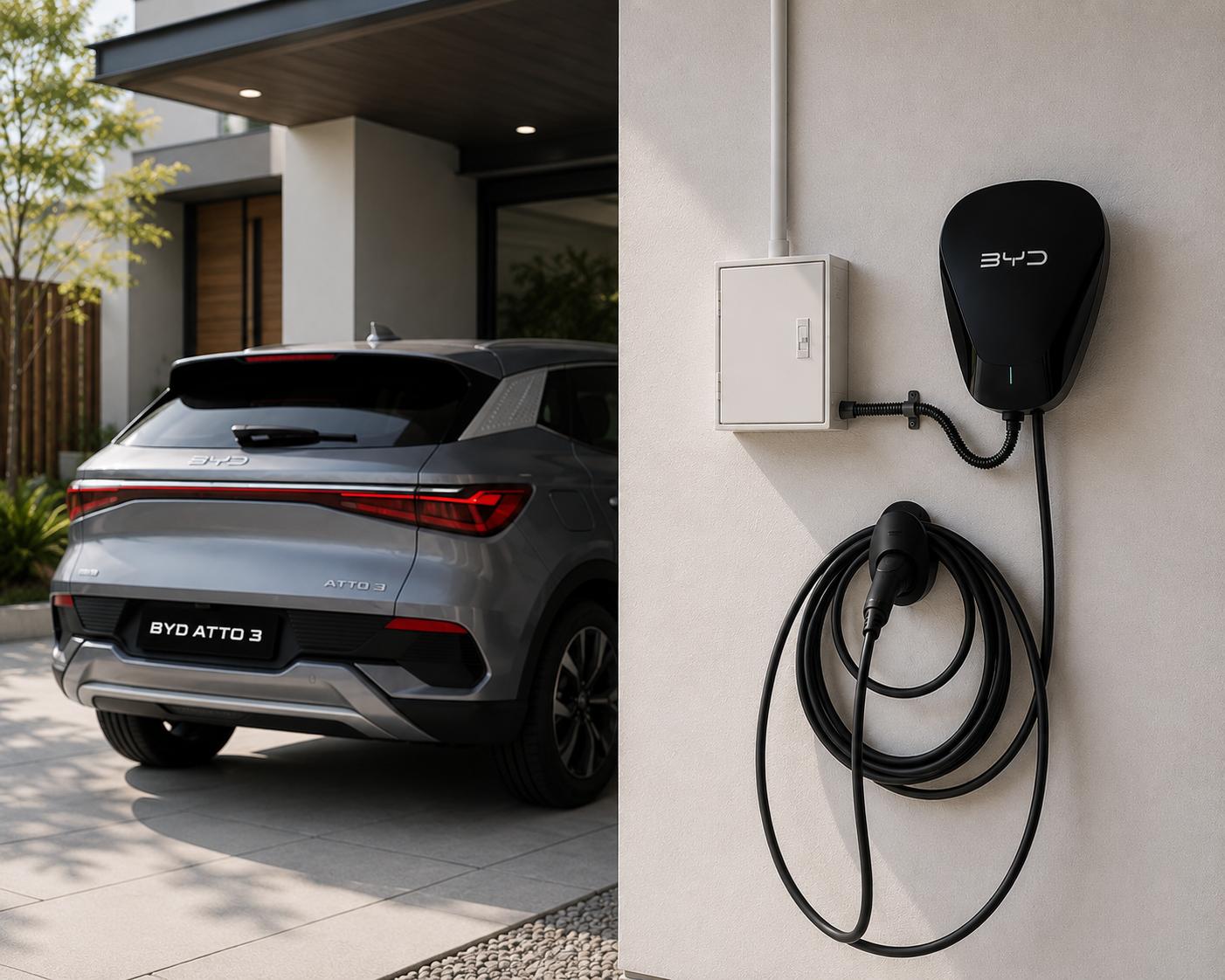

BYD 7kW home charger installation by SiSUN ELECTRIC in Islamabad

⚡ BYD Wall Box — 7kW Single Phase

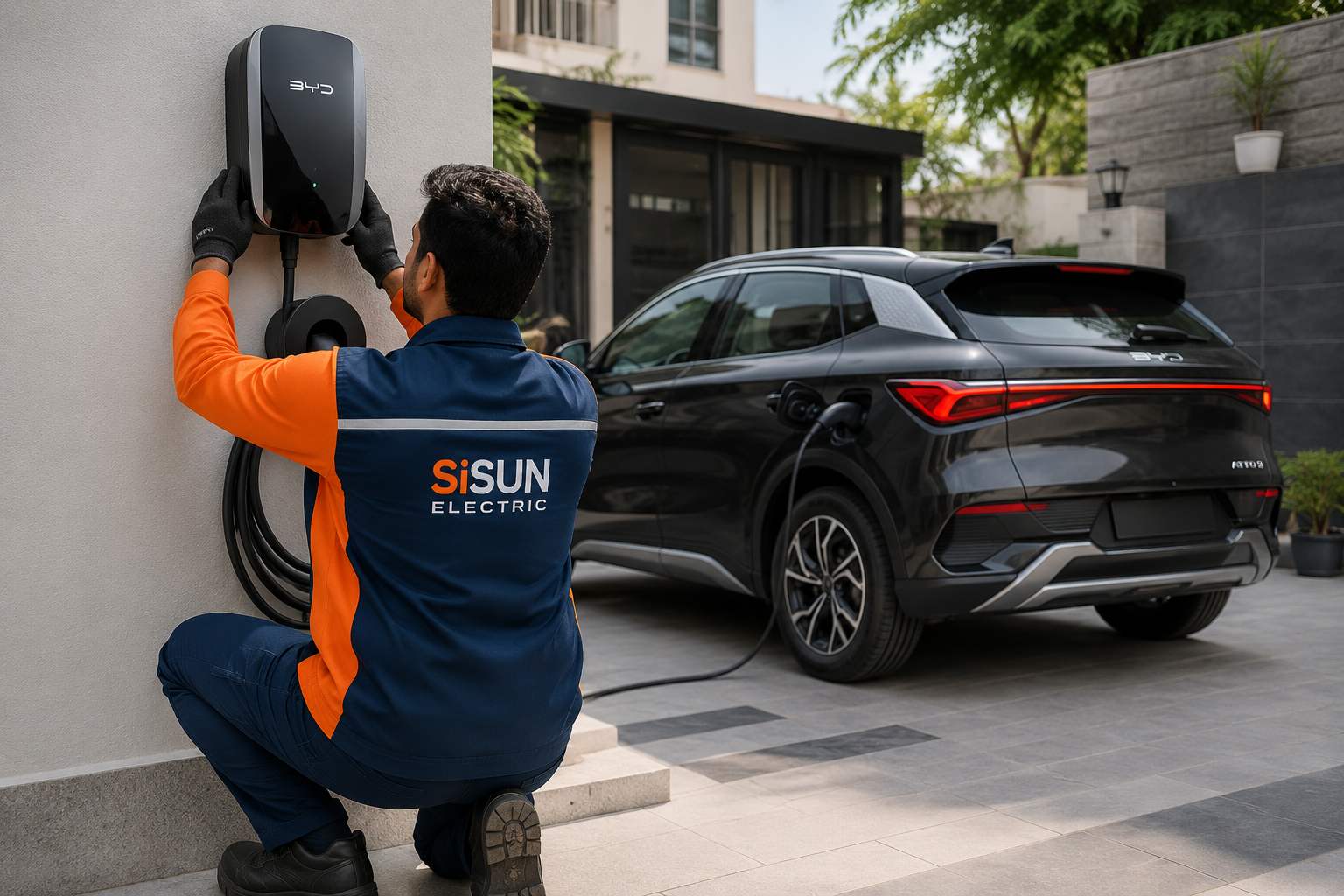

SiSUN ELECTRIC engineer conducting free site survey for BYD charger in Islamabad

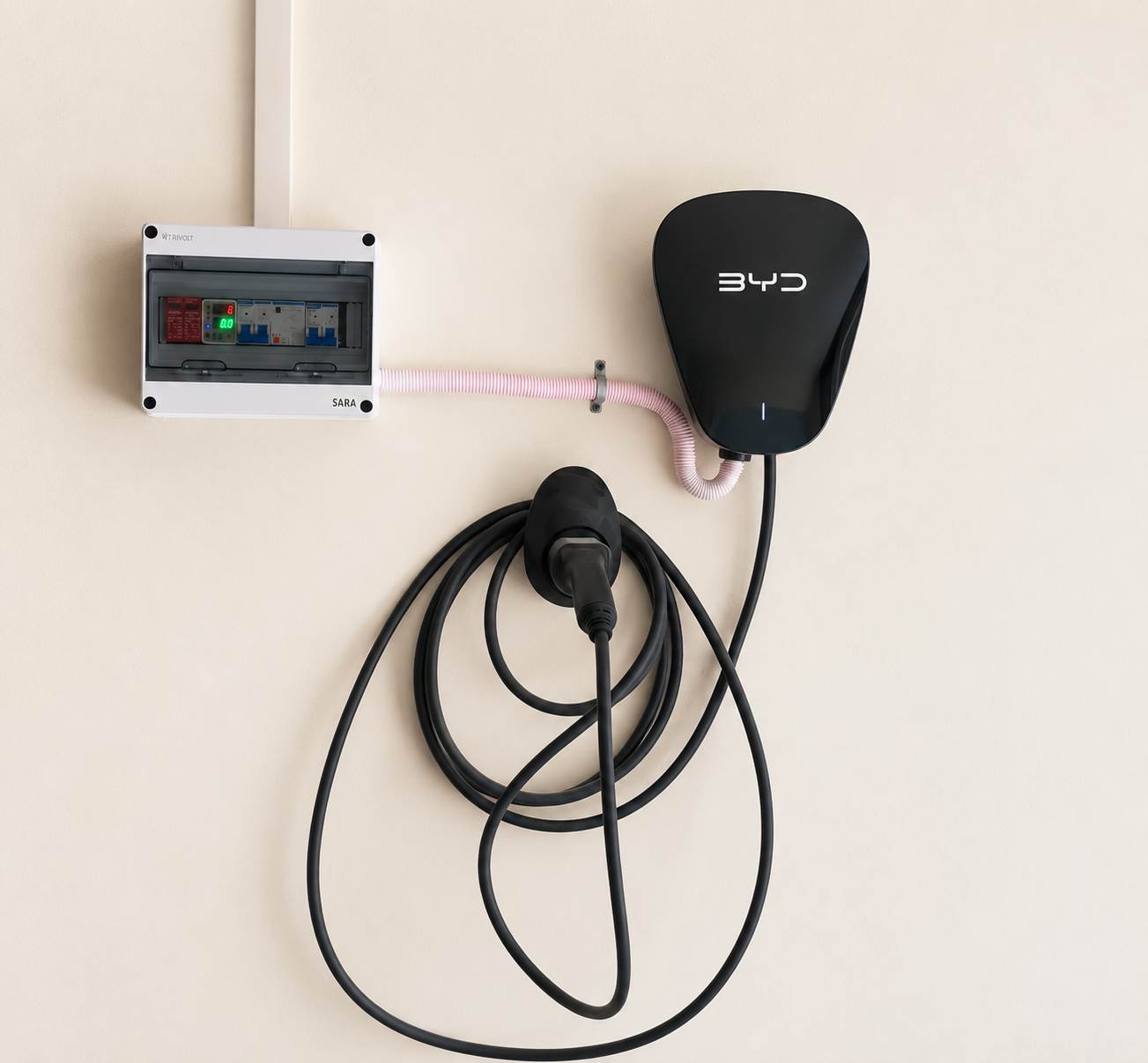

Completed BYD home charger installation by SiSUN ELECTRIC

What's Included

Complete Rs 65,000 BYD Charger Package

Everything supplied and installed. No hidden costs. This is BYD's official Bill of Materials for a single-phase 7kW home charger installation — verified by BYD Pakistan (MMC).

BYD Single Phase 7kW Home Charger — Complete Installation

BYD Standard Bill of Materials · Applicable from 12-Jan-2026

Rs 65,000 ex-tax

#	Item	Specification	Make / Standard	Qty
1	Power Cable 10mm² Non-Flexible, 2-Core copper conductor	Multi-strand copper core, hard/flexible wire	Pakistan Cables	10 Mtr
2	Earthing Cable 6mm² Non-Flexible, Single Core copper conductor	Single core, copper	Pakistan Cables	10 Mtr
3	Cable Protective Sleeve (PVC/Duct) Dia 19–25 mm	Flammability rating V-1 (comply with local standards)	Adamjee Dura	10 Mtr
4	Leakage Protector — RCCB (40A) 2P(L/N) · 30–100 mAmps	Comply with local standards	Chint	1 Nos.
5	Miniature Breaker (40A)	Comply with local standards	Chint	1 Nos.
6	Surge Protector	Included in BYD Wall Box charger unit	BYD (Built-in)	1 Nos.
7	Distribution Box (DB) for Breakers	Protection level: IP65 Water-proof, comply with local standards, PZ30-6	Standard · IP65	1 Nos.
8	Crimping Thimbles 10mm² Terminals	10mm² terminals	Standard	20 Nos.
9	Installation & Commissioning	Labor, transportation, installation, testing and commissioning	SiSUN ELECTRIC Engineers	1 Nos.

Optional Add-On: Earthing / Grounding System

Grounding Electrode System

Conductor laid through pipe · Grounding electrode must be firm and reliable · Ground resistance ≤4Ω · Round bar/copper rod (Ø8mm) · Length ≥1.5m · Grounding cable 26mm² · Distance from wall ≥500mm

+ Rs 12,000

💬 Book Installation for Rs 65,000 →

Why Upgrade Your Charger

Stock 2.2kW Charger vs 7kW Wall Box

The portable charger that came with your BYD is convenient for emergencies — but it was never designed for daily home charging. Here's why a dedicated 7kW wall box transforms your EV ownership.

🔌

Stock Portable Charger

2.2kW · Plugs into wall socket

Charging power2.2 kW

Circuit typeStandard 16A socket

Atto 2 (45 kWh) — full charge~22 hours ⚠️

Atto 3 (50 kWh) — full charge~24 hours ⚠️

Seal (82 kWh) — full charge~40 hours ⚠️

Surge / leakage protectionNone (socket dependent)

Best forEmergency top-up only

⚡

BYD 7kW Wall Box Recommended

7kW · Dedicated circuit · Installed by SiSUN

Charging power7 kW (3× faster)

Circuit typeDedicated 40A circuit with RCCB

Atto 2 (45 kWh) — full charge~7 hours ✅ Overnight

Atto 3 (50 kWh) — full charge~7.5 hours ✅ Overnight

Seal (82 kWh) — full charge~12 hours ✅ Overnight

Surge / leakage protectionFull RCCB + Surge built-in ✅

Best forDaily home charging ✅

💡 The verdict: If you drive your BYD daily in Islamabad or Rawalpindi, a 7kW wall box installed by SiSUN ELECTRIC means your car is always fully charged by morning — safely, quickly, and with complete surge and leakage protection. The Rs 65,000 complete package pays for itself within months of avoiding public charging fees.

All BYD Pakistan Models

7kW Charging Time for Every BYD in Pakistan

All BYD vehicles sold by BYD Pakistan (MMC) are fully compatible with the 7kW Wall Box installed by SiSUN ELECTRIC. Here are the real-world charging times for each model.

Pure Electric

BYD Atto 2

Battery45.12 kWh Blade

Range~380 km

Stock 2.2kW (full)~22 hrs

7kW Wall Box (full)~6.5 hrs ⚡

Pakistan PriceRs 72.9 lac

Pure Electric

BYD Atto 3

Battery49.92 kWh Blade

Range~420 km

Stock 2.2kW (full)~24 hrs

7kW Wall Box (full)~7.5 hrs ⚡

Pakistan PriceRs 89.9 lac

Pure Electric

BYD Seal

Battery82.56 kWh Blade

Range~650 km

Stock 2.2kW (full)~40 hrs

7kW Wall Box (full)~12 hrs ⚡

0–100 km/h5.9 sec

Pure Electric

BYD Sealion 7

Battery82.56 kWh Blade

Range~482 km (WLTP)

Stock 2.2kW (full)~40 hrs

7kW Wall Box (full)~12 hrs ⚡

Pakistan PriceRs 154.9 lac

PHEV Pickup

BYD Shark 6

Battery29.58 kWh Blade

EV Range~100 km (pure EV)

Total Range~800 km (hybrid)

7kW Wall Box (EV full)~4.5 hrs ⚡

V2L Power Output✅ Available

📝 Note: Charging times shown are estimates for 20%→100% charge at 7kW AC. Actual times may vary depending on battery management system, temperature, and grid voltage. All BYD models in Pakistan use Type 2 AC charging inlet, fully compatible with the BYD 7kW Wall Box installed by SiSUN ELECTRIC.

How It Works

Your BYD Charger Installation in 4 Steps

From first contact to charging at home — SiSUN ELECTRIC makes the process simple, transparent, and fast.

Contact & Free Site Survey

WhatsApp or call us. Our engineer visits your home in Islamabad or Rawalpindi, assesses your electrical panel, identifies the ideal charger location, and confirms the scope — completely free.

Confirm & Pay Advance

We provide a transparent quote (standard package is Rs 65,000 all-inclusive). Confirm your booking with 100% advance payment. We schedule installation within 3–5 working days.

Installation Day

Our PEC-licensed engineers arrive on the confirmed date. They install the conduit, cable, distribution box, RCCB, and BYD Wall Box charger — neatly and to BYD's specifications.

Testing, Commissioning & Handover

Full electrical testing, BYD charger commissioning, test charge of your vehicle, and handover documentation. Your 1-year warranty starts from this date. Charge from day one.

📅 Book Free Site Survey Today →

Why SiSUN ELECTRIC

Islamabad's Most Trusted BYD Charger Installer

🤝

Officially Authorized by BYD

SiSUN ELECTRIC is officially authorized by BYD Pakistan (MMC) as a certified EV charger installer. You get genuine BYD equipment, full manufacturer warranty, and installation to BYD's exact standards.

👷

PEC Licensed Engineers

All installations are carried out by Pakistan Engineering Council (PEC) licensed engineers. Not general electricians — certified professionals trained for EV charging infrastructure.

📦

Genuinely All-Inclusive

Rs 65,000 covers everything in BYD's Bill of Materials — cables, conduit, RCCB, distribution box, surge protection, labor, testing and commissioning. Zero hidden charges.

📍

Islamabad-Based Team

Headquartered in Bahria Town Phase 4, Islamabad. Fast site visit response across all of Islamabad and Rawalpindi — no outsourced crews from other cities.

🛡️

1-Year Installation Warranty

Full 1-year warranty on workmanship, wiring, and all installed components. The BYD charger unit carries its own manufacturer warranty on top of ours.

☀️

Solar + EV Integration

Already have solar? We can integrate your BYD home charger with your existing solar system so you charge your car with clean energy — reducing your running cost to near zero.

Where We Install

BYD Charger Installation Across Islamabad & Rawalpindi

We cover all residential areas across the twin cities. If you're unsure, WhatsApp us your address and we'll confirm coverage within minutes.

🏛️ Islamabad

We cover all residential and commercial sectors across Islamabad including DHA, Bahria Town, and all G, F, E, I, H sectors.

DHA Islamabad Bahria Town Ph 1–8 F-6, F-7, F-8 E-7, E-11 G-10, G-11, G-13 I-8, I-10 PWD Colony Bani Gala Margalla Town All ICT Zones

🏙️ Rawalpindi

Full coverage across Rawalpindi including all commercial zones, DHA, Bahria Town, and the GT Road corridor.

DHA Rawalpindi Bahria Town Ph 1–8 Gulraiz Housing Askari Schemes Saddar Chaklala Westridge GT Road Corridor PWD Murree Road

Don't see your area? We most likely cover it. Confirm in seconds:

📍 Confirm Coverage for My Address →

Frequently Asked Questions

BYD Charger Installation — Your Questions Answered

SiSUN ELECTRIC's complete BYD 7kW home charger installation package in Islamabad and Rawalpindi is priced at Rs 65,000 ex-tax. This is truly all-inclusive — BYD Wall Box charger unit, 10mm² power cable (10m), 6mm² earthing cable (10m), conduit (10m), 40A RCCB leakage protector, 40A miniature breaker, IP65-rated distribution box, crimping thimbles, and full installation, testing and commissioning by PEC-licensed engineers. No hidden charges.

Installation takes 3 to 5 working days from receipt of advance payment and site clearance. Before scheduling, we conduct a free site assessment at your home to confirm the electrical setup. Most Islamabad and Rawalpindi installations are completed on a single visit day once scheduled.

The stock BYD portable charger (2.2kW) plugs into a standard 16A household socket. It's designed for emergencies, not daily charging — it takes over 20 hours to fully charge a BYD Atto 3 (50 kWh). The 7kW Wall Box installed by SiSUN ELECTRIC is over 3x faster — the same Atto 3 charges fully overnight in approximately 7.5 hours. The wall box also has a dedicated circuit with proper 40A RCCB leakage protection and surge protection built in, making it significantly safer for daily use than plugging into a regular socket.

Yes — SiSUN ELECTRIC is an officially authorized BYD EV charger installer, appointed directly by BYD Pakistan (MMC). We are the dedicated authorized home charger installer for Islamabad and Rawalpindi. Our installations strictly follow BYD's official Bill of Materials and approved specifications — the same standards BYD mandates for all its certified installers in Pakistan. All our engineers are PEC-licensed.

All BYD electric and plug-in hybrid vehicles sold in Pakistan are fully compatible with the BYD 7kW Wall Box: BYD Atto 2, BYD Atto 3, BYD Seal, BYD Sealion 7, and the BYD Shark 6 (PHEV pickup). All use a Type 2 AC charging inlet, which is the standard connector on the BYD 7kW Wall Box. The Shark 6 (29.58 kWh battery) can be charged to full in approximately 4.5 hours with the 7kW wall box.

Yes — SiSUN ELECTRIC offers a completely free site survey before any BYD home charger installation in Islamabad and Rawalpindi. Our engineer visits your home, assesses your existing electrical panel and available load, identifies the best placement for the charger, and confirms the scope of work — with no obligation and no cost to you. WhatsApp us on 0335 0777766 to arrange your free survey.

Home charging on a 7kW wall box is significantly cheaper than public DC fast charging. In Islamabad, residential electricity (protected consumer category) costs approximately Rs 30–50 per unit (kWh). A full charge of a BYD Atto 3 (50 kWh) at home costs roughly Rs 1,500–2,500. At a public DC fast charger (Rs 80–150/kWh), the same charge costs Rs 4,000–7,500. A home charger at Rs 65,000 typically pays for itself within a few months for daily BYD owners.

SiSUN ELECTRIC provides a 1-year installation warranty on all BYD home charger installations covering workmanship, wiring, conduit, distribution box, RCCB, and all installed components. The BYD Wall Box charger unit carries its own manufacturer's warranty from BYD in addition. If any issue arises within the warranty period, our team returns at no cost.

Get in Touch
